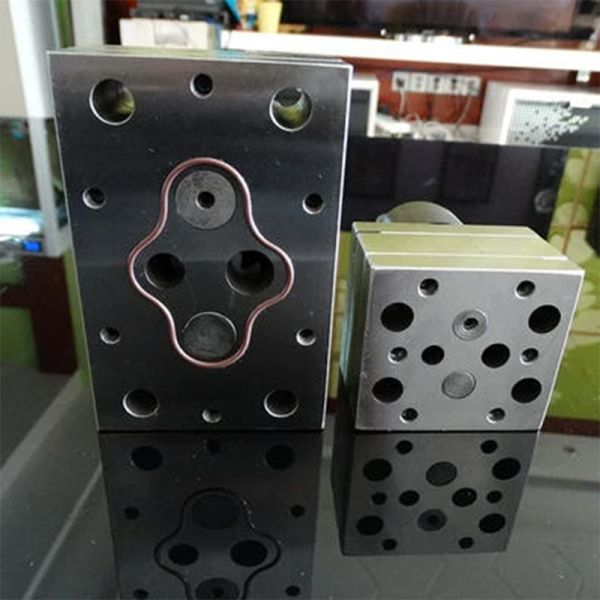

JR Series Staple Fiber & Polyester Melt Metering Pump
JR series gear metering pump is a high-precision fluid conveying equipment specially designed for staple fiber, polyester melt, and glue coating industrial scenarios. Adopting a compact one-in one-out structure, it delivers stable flow output and excellent pressure resistance, widely used in extrusion, pipeline pressurization, polyurethane foaming, PUR hot melt adhesive spraying, and other precision processes.
Technical Specifications
| Item |
Specification |
Unit |
| Model |
JR-30 |
- |
| Displacement Per Revolution |
30.0 |
cc/rev |
| Operating Speed |
10-100 |
rpm |
| Inlet Pressure |
0-1 |
MPa |
| Outlet Pressure |
0.8-5.5 |
MPa |
| Metering Accuracy |
±0.5% |
- |
| Applicable Medium Viscosity |
0.3-30000 |
mm²/s |
| Operating Temperature |
-20 ~ 200 |
ºC |
| Overall Length |
164.3 |
mm |
| Overall Width |
90 |
mm |
| Overall Height |
122 |
mm |
| Net Weight |
Approx. 11.5 |
kg |
| Material |
Alloy steel / Stainless steel |
- |
| Application |
Glue dispensing, coating, polyurethane foaming, PUR hot melt adhesive, polyester melt, staple fiber |
- |
Main Applications
- Chemical Fiber Spinning: Suitable for melt spinning of polyester and polyamide. Stable flow rate and precise metering ensure even filament formation.
- Industrial Fluid Metering: Can be used for PUR hot melt adhesive, polyurethane foaming, glue spraying, etc., to meet high-precision proportioning requirements.
- High Temperature & High Pressure Conditions: Resistant to high temperature up to 320ºC and outlet pressure up to 40MPa, suitable for extreme working conditions in chemical and chemical fiber industries.
Product Advantages
- High precision metering ensures stable and uniform flow output
- Excellent high temperature resistance up to 320ºC and high pressure resistance up to 40MPa
- Wide application in chemical fiber spinning, hot melt adhesive, polyurethane foaming and other industries
- Compact structure, reliable performance and long service life
- Stable operation with low noise, suitable for long-term continuous working conditions
Structural Interface Features
Multi-layer stainless steel precision gear pump structure, pressure-resistant and high temperature resistant, suitable for harsh working conditions such as chemical fiber spinning.
Interface Layout
- 4 × Φ11 mounting holes
- Inlet / outlet size: Φ13
- Central shaft connection: Φ16
- External auxiliary ports: Φ10, Φ8 and other auxiliary holes
Precision Advantage
Precise control of gear meshing clearance ensures stable metering accuracy for high-viscosity fluids under high temperature and high pressure.
Why Choose Our JR Series Metering Pump?
- Customization Support: We accept custom displacement, interface, and material requirements to meet special working conditions
- Quality Assurance: Strict factory testing ensures stable performance and long service life, reducing maintenance costs
- Professional Service: We provide technical consultation, installation guidance, and after-sales support to ensure smooth equipment operation
- Cost-Effective: High-precision metering reduces material waste, improving production efficiency and product quality
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
Packaging & Shipping
- Standard export wooden case packaging to protect the pump from damage during transportation
- Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
- Complete product documents (operation manual, test report, quality certificate) are provided with each shipment
Frequently Asked Questions
What can you buy from us?
We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
What is your terms of packing?
Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
How about your delivery time?
Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
What's your MOQ?
We have no MOQ demand, 1 piece for test purpose at first is acceptable.
How do you ensure good product quality?
We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
How long your quotation valid?
Our quotation valid for 1 month.
Can you accept OEM brand?
Yes, we can accept the OEM brand without extra charge.
How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
