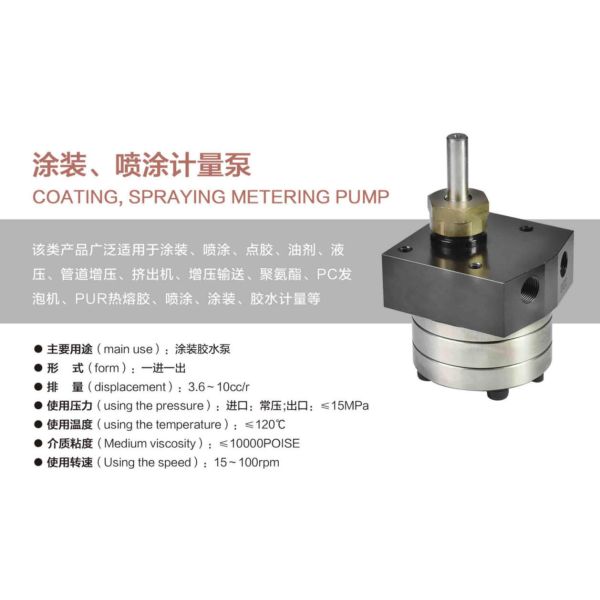

HRF Series High Precision Coating Spraying Metering Pump
The Coating & Spraying Metering Pump is a high-precision quantitative delivery pump specifically engineered for coating and spraying applications. It ensures stable and accurate delivery of high-viscosity fluids including glue, paint, and oil agents. Serving as the core precision component for coating production lines, dispensing equipment, and hot melt adhesive systems, this pump is suitable for diverse industrial fluid delivery scenarios.
Technical Specifications
| Main Use |
Coating & Glue Transfer Pump |
| Structure Form |
1 Inlet & 1 Outlet |
| Displacement Range |
3.6~10cc/r (Displacement per Revolution) |
| Working Pressure |
Inlet: Normal Pressure; Outlet ≤15MPa |
| Working Temperature |
≤120ºC |
| Applicable Medium Viscosity |
≤10000POISE |
| Applicable Speed Range |
15~100rpm |
| Mounting Screw Specification |
M8 (Uniform for All Models) |
Main Applications
- Coating, spraying, dispensing, and oil delivery systems
- Hydraulic systems and pipeline pressurization
- Extruder supporting and booster conveying
- Polyurethane foaming and PC foaming machines
- PUR hot melt adhesive applications
- Spraying, coating, and glue quantitative metering
Product Advantages
- High metering accuracy: Precision gear meshing structure ensures stable flow with minimal error
- Strong high-viscosity adaptability: Handles up to 10000POISE viscosity for demanding coating applications
- Multi-scenario universal: Suitable for polyurethane foaming, hot melt adhesive, dispensing and oil delivery
- Complete specifications: Full displacement coverage from 3.6~10cc/r for precise production line matching
- Standardized installation: Unified mounting flange and screw specifications for easy integration and maintenance

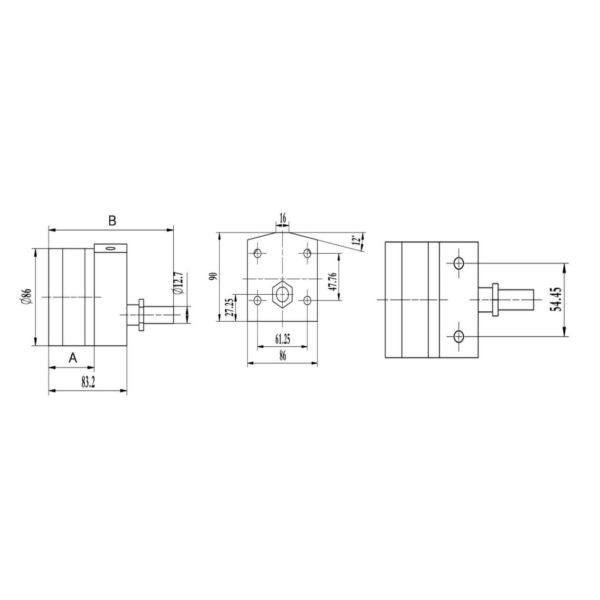

Structural Interface Features
- Main Body Mounting Flange: 86×90mm
- Shaft End Specification: Φ12.7mm, Shaft Extension Height 54.45mm
- Inlet & Outlet Diameter: Φ86mm, compatible with standard coating pipelines
Why Choose Our HRF Series Metering Pump?
- Customization Support: Custom displacement, interface, and material requirements for special working conditions
- Quality Assurance: Strict factory testing ensures stable performance and extended service life
- Professional Service: Technical consultation, installation guidance, and comprehensive after-sales support
- Cost-Effective: High-precision metering reduces material waste while improving production efficiency
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
Packaging & Shipping
- Standard export wooden case packaging for maximum protection during transportation
- Multiple shipping methods available (sea, air, express) to meet delivery requirements
- Complete product documentation including operation manual, test report, and quality certificate
Frequently Asked Questions
Q1: What can you buy from us?
A1: We provide one-stop flow meter services including flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, and related instruments.
Q2: What is your terms of packing?
A2: Standard packaging uses JSN brand colorful cardboard boxes. OEM brand packaging uses brown cardboard boxes.
Q3: How about your delivery time?
A3: Standard products: 6-7 working days after order confirmation. Non-standard products: 8-10 working days after order confirmation.
Q4: What's your MOQ?
A4: No minimum order quantity required - 1 piece for testing purposes is acceptable.
Q5: How do you ensure good product quality?
A5: We maintain a complete quality control system with full inspection by IQC and OQC departments before shipment.
Q6: How long is your quotation valid?
A6: Our quotations are valid for 1 month.
Q7: Can you accept OEM brand?
A7: Yes, we accept OEM branding without extra charges.
Q8: How long is your product warranty?
A8: 7-day replacement and 12-month free repair service for quality-related issues.
Q9: Can you produce according to the samples?
A9: Yes, we can produce based on your samples or technical drawings.
